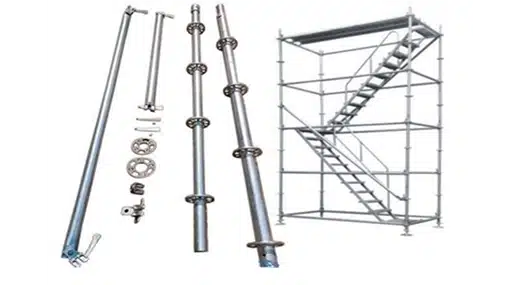

Ring Lock Scaffolding System
Standard: AS/NZS1576
- Safety: Ring lock standards are assembled with ledgers and diagonal braces using secure fixed wedge connections, It enhance the safety and stability of the system.
- Economic: Easily assembled system scaffold saves time and labor costs.
- Application: Ringlock scaffolding is widely used in many construction projects, such as Civil & Building, interior decoration, stage erection, bridge construction, etc.
Two Normal Types
Inner Spigot
Outer Sleeve Spigot
60 system standard
- Material: Q355 Steel
- Surface treatment: Hot dipped galvanized
- Dimensions: $60*3.25mm
- Effective length: 500/1000/1500/2000/2500/ 3000 mm
- Widespan Sinusoidal Corrugated Profile
Item No.
- YFRS48 050
- YFRS48 100
- YFRS48 150
- YFRS48200
- YFRS48250
- YFRS48 300
Length
- 0.5m / 1'7”
- 1.5m / 3'3”
- 1.5m /4’11”
- 2.0m /16’6”
- 2.5m /8’2”
- 3.0m /9’9”
Theoretic Weight
- 3.2 Kg /7.04 lbs
- 5.5 Kg / 12.1 lbs
- 7.8 Kg/17.16 lbs
- 10.1 Kg/22.22 lbs
- 12.4 Kg/27.28 lbs
- 14.6 Kg/32.12 lbs
Ring lock standard/ vertical with spigot
- Material: Q355 Steel
- Surface treatment: Hot dipped galvanized
- Dimensions: 48.3*3.25mm

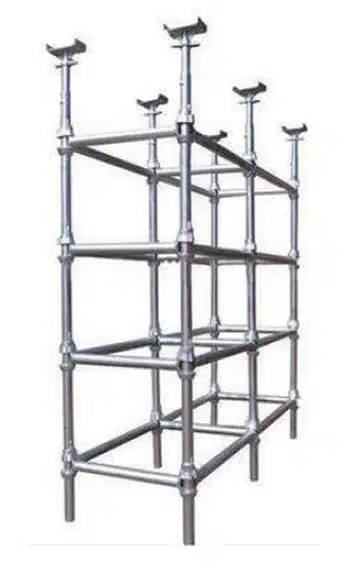

Cup Lock Scaffolding System
Cuplock standard/ vertical (Material: Q235/Q355 Spec: 48.3*3.2 mm.
Item No.
- YFCS 300
- YFCS 250
- YFCS 200
- YFCS 150
- YFCS 100
- YFCS 050
Length
- 3m / 9'10”
- 2.5m / 8'2”
- 2m /6’2”
- 1.5m /4’11”
- 1m /3’3”
- 0.5m /1’8”
Theoretic Weight
- 17.5 kg/38.25 Ibs
- 14.57 kg/32.12 lbs
- 11.82 kg/26.07 lbs
- 9.05 kg/19.95 Ibs
- 3.5 kg/7.77 lbs
- YFRS48 300
Cuplock ledger/ Horizontal (Material: Q235 Spec: 48.3*3.2 mm)
Item No.
- YFCL 250
- YFCL 180
- YFCL 150
- YFCL 120
- YFCL 090
- YFCL 060
Length
- 2.5m / 8'2”
- 1.8m /6’
- 1.5m /4’11”
- 1.2m /4’
- 0.9m / 3'
- 0.6m /2’
Theoretic Weight
- 9.35 kg/20.61 Ibs
- 6.85 kg/15.1 lbs
- 5.75 kg/9.46 Ibs
- 4.29 kg/13.91 Ibs
- 3.55 kg/7.83 lbs
- 2.47 kg/5.45 lbs
Cuplock Diagonal Brace Material: Q235 Spec: 48.3* 3.2mm
Item No.
- YFCD 1518
- YFCD 1525
- YFCD 2018
- YFCD 2025
Length
- 1.5*1.8m
- 1.5*2.5 m
- 2*1.8 m
- 2*2.5 m
Theoretic Weight
- 8.25 kg/18.19 Ibs
- 9.99 kg/22.02 Ibs
- 9.31 kg/20.52 lbs
- 10.86 kg/23.94 lbs
Cuplock intermediate transom Material: Q235 Spec: 48.3*3.2mm
Item No.
- YFCIT 250
- YFCIT 180
- YFCIT 150
- YFCIT 120
- YFCIT 090
- YFCIT 060
Length
- 2.5m / 8'2”
- 1.8m /6’
- 1.3m /4’3”
- 1.2m /4’
- 0.795m / 2'7”
- 0.6m /2’
Theoretic Weight
- 9.35 kg/20.61 Ibs
- 6.85 kg/15.1 lbs
- 5.75 kg/9.46 Ibs
- 4.29 kg/13.91 Ibs
- 3.55 kg/7.83 lbs
- 2.47 kg/5.45 lbs
Quick Lock Scaffolding System
Standard : Material : Q235 Finishing : Painted Quick lock standard/Vertical (Spec : 48.3*3.25mm)
Item No.
- YFQLQ 300
- YFQLQ 240
- YFQLQ 180
- YFQLQ 120
- YFQLQ 090
- YFQLQ 060
Length
- 3m
- 2.4 m
- 1.8 m
- 1.2 m
- 0.9 m
- 0.6 m
Theoretic Weight
- 17.6 kg
- 13.82 kg
- 10.52 kg
- 7.31 kg
- 5.67 kg
- 3.92 kg
Quick lock ledger/Horizontal (Spec : 48.3*3mm)
Item No.
- YFQLL 240
- YFQLL 180
- YFQLL 180
- YFQLL 120
- YFQLL 090
- YFQLL 060
Length
- 2.4m
- 1.8m
- 1.5m
- 1.2m
- 0.9m
- 0.6m
Theoretic Weight
- 9.93 kg
- 7.63 kg
- 6.48 kg
- 5.32 kg
- 4.17 kg
- 3.02 kg
Quick Stage Scaffolding System
Quickstage scaffolding is a type of modular scaffold system that includes components of verticals, horizontals, transom, brackets, boards and battens, base jacks, tie bars, etc. On the quickstage horizontals, there are pressed wedges, and on quickstage standards, there are V clips form a star at every 500mm.

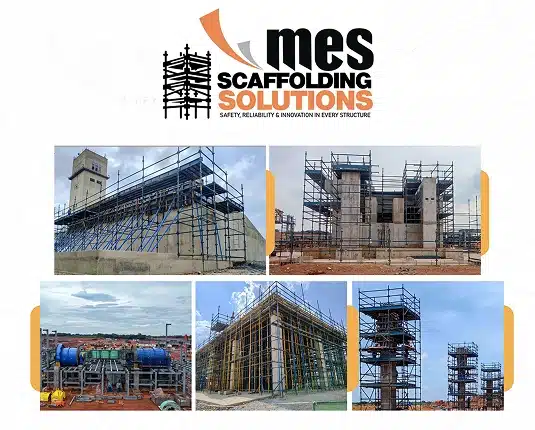

Advantages of using MES Scaffolding Rental Services
- Cost-Effective: Renting scaffolding eliminates the need for a large upfront investment in purchasing equipment, saving capital for other project needs.
- High-Quality Equipment: MES provides well-maintained, high-quality scaffolding that meets industry standards, ensuring safety and reliability.
- Flexibility: Tailor your rental period to match your project timeline, allowing for adjustments as project requirements change.
- Expert Support: MES offers professional consultation and support, helping you choose the right scaffolding solution for your specific project needs.
- Safety Compliance: All scaffolding equipment complies with local and international safety regulations, reducing the risk of accidents and ensuring worker safety.
- Quick Installation and Dismantling: Experienced MES teams ensure fast and efficient scaffolding setup and removal, minimizing project delays.
- Variety of Scaffolding Types: MES provides a range of scaffolding options, including frame, system, shoring, and access towers, suitable for various applications.
- On-Site Inspections: Regular inspections and maintenance services ensure that the scaffolding remains in optimal condition throughout the rental period.
- Reduced Storage Needs: Renting scaffolding eliminates the need for long-term storage space, reducing your overall logistics and storage costs.
- Scalability: Easily scale your scaffolding needs up or down based on project size and complexity, providing a customized solution for any project scope.
